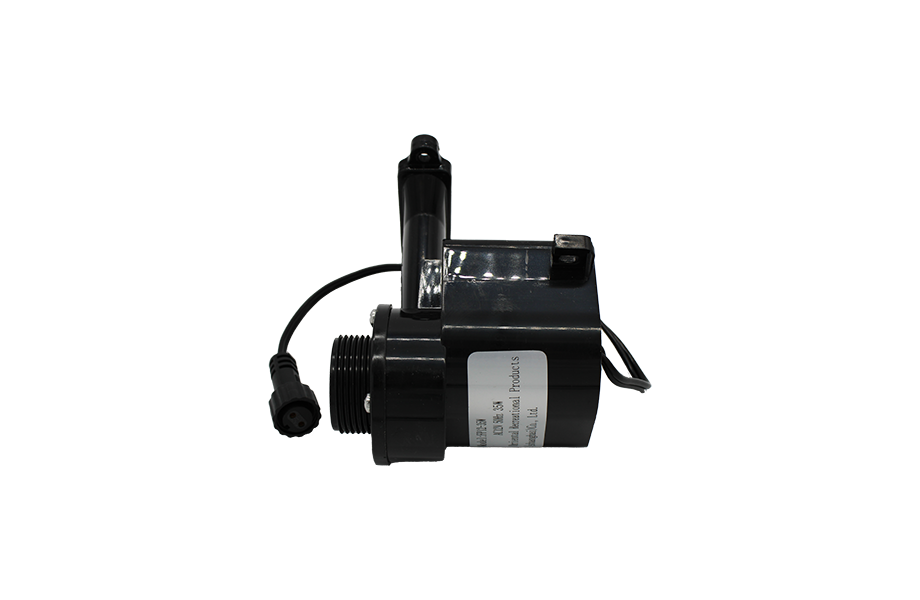

MSPA Lite 2020 Filter Pump

This pump is for Lite 2020 generation inflatable MSPA spas.

To assemble inside the motor unit.

MSPA reference : B9301405

This circulation pump has the characteristic of having a discharge in the form of a stretched ellipse :

Pump dimensions :
Outside diameter of the screw thread: 36.30 mm
Screw thread length: 16 mm
Pump height (including discharge chimney): 66.80 mm
Pump height (discharge chimney not included): 26 mm
Pump depth: 93.75 mm
Internal width of the discharge chimney: 48.20 mm
External width of the discharge chimney (with its two screw holes): 75.40 mm
Internal thickness of the discharge chimney: 13.60 mm
External thickness of the discharge chimney: 22.40 mm
Pump power and model : FP12-35W AC12V 50Hz 35W

Pump Seal not included
